Norica Comando

 Post Reply Post Reply
Author
Message
Daz-nz View Drop Down
Groupie
Groupie
Avatar

Joined: 23 Dec 2025
Location: Wanganui
Status: Offline
Posts: 16
Post Options Post Options   Thanks (0) Thanks(0)   Quote Daz-nz Quote  Post ReplyReply Direct Link To This Post Topic: Norica Comando
    Posted: 24 Dec 2025 at 6:27pm

A mate just gave me a Norica Comando to fix. I suspect the leather washer has failed.

The blue book says its rated at 530fps, but cant find a manufacture date. Possibly 70s or 80s? Any one know about this model?

Looks to be a junior model. I was told about its use by the owner, back when he was young, it was used to shoot at each other, which was common back then
Diana 350 Magnum
And a few others
Back to Top
Daz-nz View Drop Down
Groupie
Groupie
Avatar

Joined: 23 Dec 2025
Location: Wanganui
Status: Offline
Posts: 16
Post Options Post Options   Thanks (0) Thanks(0)   Quote Daz-nz Quote  Post ReplyReply Direct Link To This Post Posted: 24 Dec 2025 at 6:30pm

Had trouble adding photo, sorted now

Edited by Daz-nz - 24 Dec 2025 at 6:36pm
Diana 350 Magnum
And a few others
Back to Top
Daz-nz View Drop Down
Groupie
Groupie
Avatar

Joined: 23 Dec 2025
Location: Wanganui
Status: Offline
Posts: 16
Post Options Post Options   Thanks (0) Thanks(0)   Quote Daz-nz Quote  Post ReplyReply Direct Link To This Post Posted: 24 Dec 2025 at 6:33pm


Edited by Daz-nz - 24 Dec 2025 at 6:37pm
Diana 350 Magnum
And a few others
Back to Top
kruzaroad View Drop Down
Senior Member
Senior Member
Avatar

Joined: 03 Jul 2022
Location: Hastings 4 now
Status: Offline
Posts: 2771
Post Options Post Options   Thanks (0) Thanks(0)   Quote kruzaroad Quote  Post ReplyReply Direct Link To This Post Posted: 24 Dec 2025 at 7:17pm
If your on a google browser just hold your finger on the image and do a Google lens search.
Got plenty of links just now doing it.


Edited by kruzaroad - 24 Dec 2025 at 7:20pm
Back to Top
mercs View Drop Down
Senior Member
Senior Member
Avatar

Joined: 25 Apr 2020
Location: Stratford
Status: Offline
Posts: 345
Post Options Post Options   Thanks (0) Thanks(0)   Quote mercs Quote  Post ReplyReply Direct Link To This Post Posted: 24 Dec 2025 at 7:21pm
Great colour scheme.

Norica styling has not changed in 40 years

Back to Top
Daz-nz View Drop Down
Groupie
Groupie
Avatar

Joined: 23 Dec 2025
Location: Wanganui
Status: Offline
Posts: 16
Post Options Post Options   Thanks (0) Thanks(0)   Quote Daz-nz Quote  Post ReplyReply Direct Link To This Post Posted: 24 Dec 2025 at 7:38pm
Thanks Kruzaroad, hadnt seen that trick before.

Same basic style, but I think your version looks better Mercs

Ill post some my photos when i get it to bits

Edited by Daz-nz - 24 Dec 2025 at 7:40pm
Diana 350 Magnum
And a few others
Back to Top
Daz-nz View Drop Down
Groupie
Groupie
Avatar

Joined: 23 Dec 2025
Location: Wanganui
Status: Offline
Posts: 16
Post Options Post Options   Thanks (0) Thanks(0)   Quote Daz-nz Quote  Post ReplyReply Direct Link To This Post Posted: 10 hours 13 minutes ago at 9:47pm

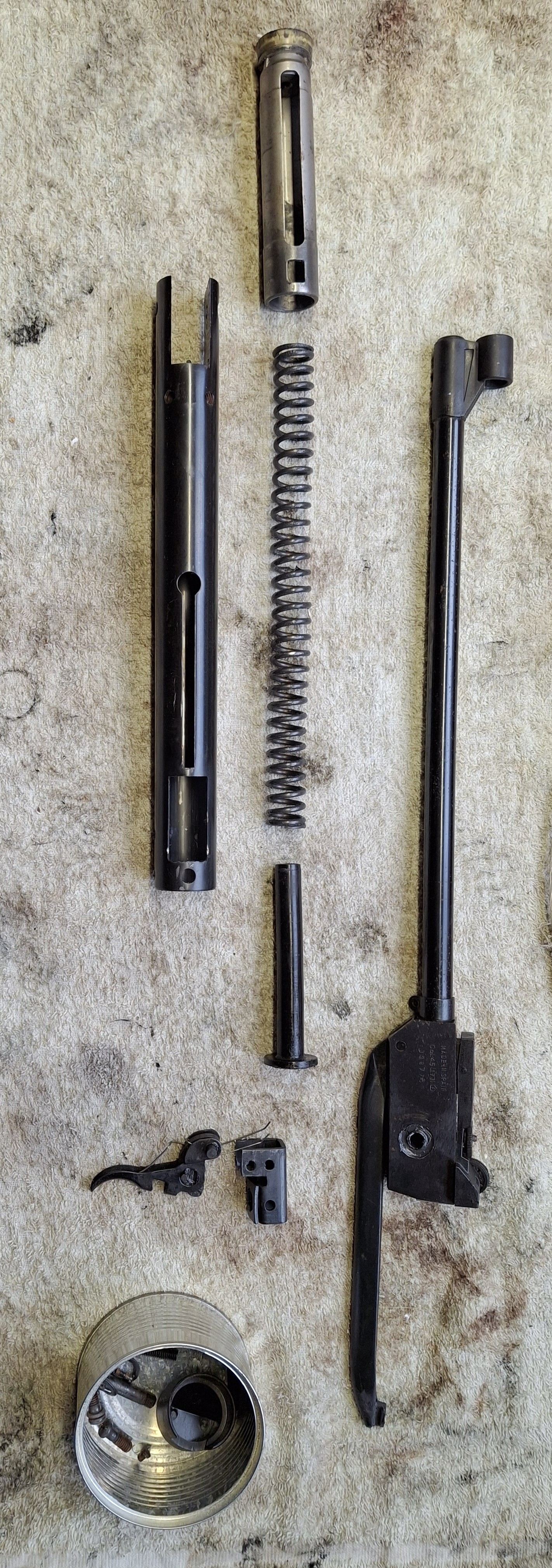

Finally got round to stripping this down, bit of a mission.

A mate has had this since he was a kid, many decades ago.
It wasn't firing pellets out, the piston moved forward and I could hear gas escaping, but not enough to fire a pellet.

Disassembly didn't go easily, a very particular clamp is required, which I don't possess, of course, so after some time, loss of skin and even more cross words, I got it apart.
The problem was the trigger block, the main spring has to be compressed in place to move trigger block forward into the main tube and lifted out the trigger hole. With very little filing, the trigger block was made to come out the end of the tube with the main spring, perhaps it was never meant to come apart after manufacturer.  Anyway, I now had it in pieces. No leather washer, it has a PTFE type, everything looked ok, except the cylinder tube was all gummed up. The piston washer has hardened, the breach o-ring isn't flash either.

Cleaned up everything, including the barrel, which probably hasn't been cleaned in decades either. Reassembled.
Its working now, although power is fairly low, claimed to be 540fps new, don't think its anywhere near that now. A new piston washer, main spring and breach seal would make a difference.

Surprisingly, my youngest really likes it, light weight, easy to shoot, and looks sporty.
I'm not a fan of it, but it does shoot consistently




Diana 350 Magnum
And a few others
Back to Top
Daz-nz View Drop Down
Groupie
Groupie
Avatar

Joined: 23 Dec 2025
Location: Wanganui
Status: Offline
Posts: 16
Post Options Post Options   Thanks (0) Thanks(0)   Quote Daz-nz Quote  Post ReplyReply Direct Link To This Post Posted: 1 hour 53 minutes ago at 6:07am
Diana 350 Magnum
And a few others
Back to Top
